S3081 hotel lock Summary

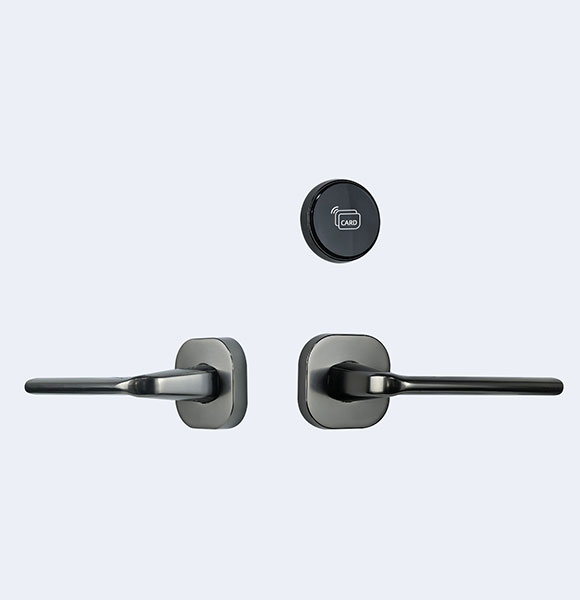

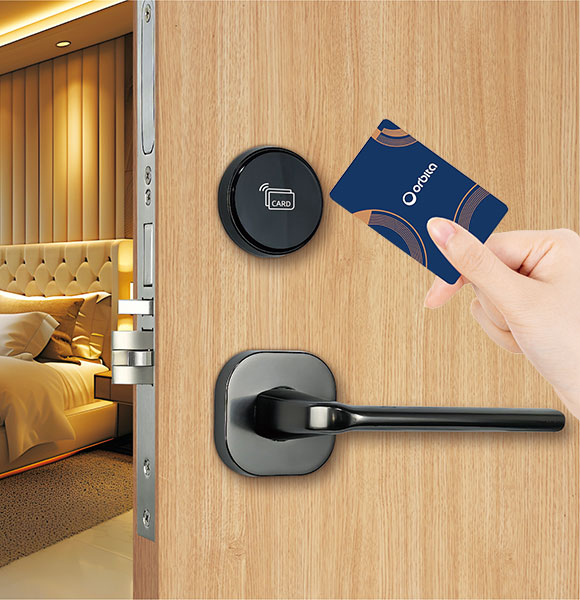

ORBITA S3081 Hotel Lock made of aluminum alloy with a Acrylic card reader cover, with strong resistance to impact, corrosion and abrasion.
S3081 Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions.our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.
S3081 Lock can be used in hotels, hospitals, schools and apartments, which comes with Orbita management system to save time and costs.
Product Details
- Solid deadbolt
- Renovated clutch inside lock panels
- Standard 1680 events,optional 3360events
- Optional Bluetooth & Wireless Online solution
- Interface with Opera or FIAS format PMS
Technical Details
Door Thickness: 1.61 " (41mm) to 3.15" (80mm) for standard product
- Operating Power: Quiescent current: <30 μA;
- dynamic current: < 200 mA
- Battery Life: last over one year
- Working Temperature: -20 ℃– 60℃;
- Relative Humidity: 20% – 90%

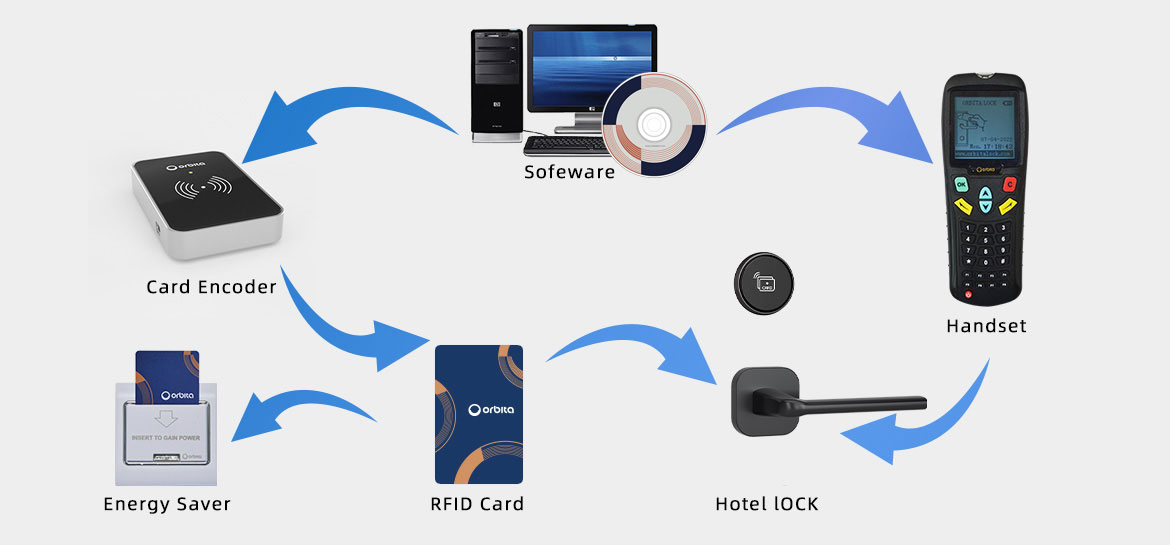

Compoments
The following ORBITA components are needed for a full functionality :
-
Encoder MI-ECD20 -
S50 Mifare Card -
Wireless Portable Programmer -
ORBITA Hotel System V5.6

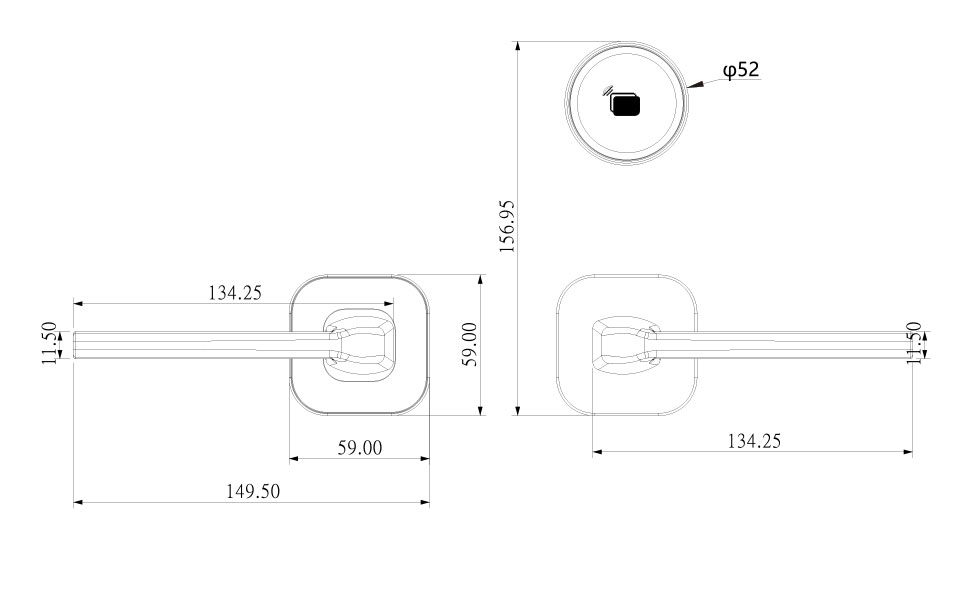

Product size (Unit:mm)
Drill holes (Unit:mm)
S3081 Hotel lock mortise Square plate (Right Open),
Note: 1. The continuous thick line parts are to be drilled, pls refer to the picture dimensions.
2.Centerline of lock body is the dimension datum line.
3.Dimension unit: mm.
4. The carmine dot line part is lock body, the continuous thin line part is door part.
