S3078 hotel lock Summary
ORBITA S3078 Hotel Lock is made of grade 304 stainless steel with a PVC card reader cover, with strong resistance to impact, corrosion and abrasion.

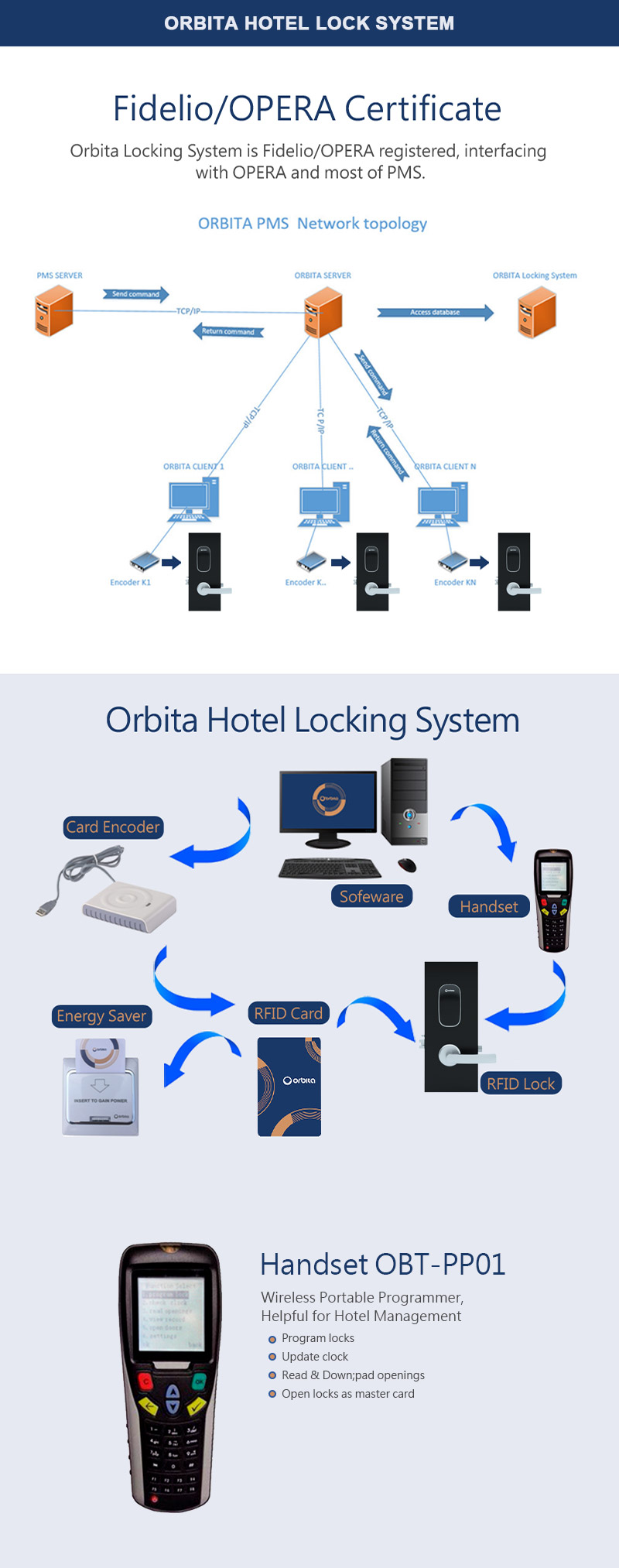

S3078 Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.
S3078 Lock can be used in hotels, hospitals, schools and apartments, which comes with Orbita management system to save time and costs.
Product Details
- Solid deadbolt
- Renovated clutch inside lock panels
- Standard 1680 events,optional 3360events
- Optinal Bluetooth & Wireless Online solution
- Interface with Opera or FIAS format PMS
- Passed the 180-minute fire test
Technical Details
Door Thickness: 11/8" (35mm) to 2（3/4 ）" (72mm) for standard product
- Operating Power: Quiescent current: <30 μA;
- dynamic current: < 200 mA
- Battery Life: last over one year
- Working Temperature: -20 ℃– 60℃;
- Relative Humidity: 20% – 90%
Compoments
The following ORBITA components are needed for a full functionality of the S3078 lock:
-
Encoder MI-ECD20 -
S50 Mifare Card -
Wireless Portable Programmer -
ORBITA Hotel System V5.6
Product size (Unit:mm)
Drill holes (Unit:mm)
S3078 Hotel lock M01DC mortise Square plate (Right Open), Note: 1. The continuous thick line parts are to be drilled, pls refer to the picture dimensions.
2.Centerline of lock body is the dimension datum line.
3.Dimension unit: mm.
4. The carmine dot line part is lock body, the continuous thin line part is door part.
Product Downloads
- PDFS3078 Hotel Lock Product manual(size：2.9M)Download
-
PDFS3078 Hotel lock Hole diagram(size：60k)Download
Descrip:S3078 Hotel lock M01DC mortise Circle plate plate (Right Open)
